How to Select the Perfect Stainless Steel Washer for Your Project?

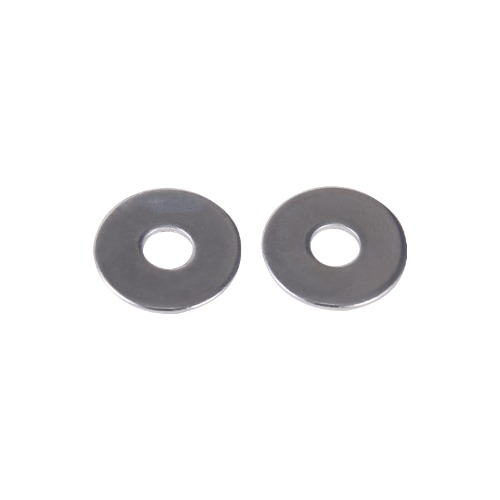

Stainless Steel Flat Washer Size Guide: Achieving Precision in Specification

Selecting the correct size for a stainless steel flat washer is a fundamental step in guaranteeing the structural integrity and functionality of a mechanical assembly. An ill-fitting washer can lead to stress concentration, joint loosening, and ultimately, equipment failure. The dimensions of a washer primarily revolve around three critical parameters: the inner diameter, the outer diameter, and the thickness. The inner diameter must be slightly larger than the bolt or stud’s diameter to allow smooth passage, yet not so large as to negate its supportive function. The outer diameter dictates the contact area between the washer and the connected parts; a larger outer diameter disperses clamping force over a wider area, protecting softer material surfaces from indentation or damage. The thickness directly influences the washer’s ability to handle elastic deformation and its load-bearing strength. While consulting a standard size chart is indispensable, a deeper understanding of the engineering principles behind these dimensions empowers one to make sound judgments and optimal selections, even in non-standard scenarios.

304 vs. 316 Stainless Steel Washers: A Deep Dive into Corrosion Resistance

304 and 316 are the two most prevalent grades of austenitic stainless steel dominating washer manufacturing, yet their suitability for different environments varies significantly. Grade 304 stainless steel, composed of 18% chromium and 8% nickel, offers excellent corrosion resistance, effectively combating oxidation and weak corrosive agents in most general atmospheres. It represents a cost-effective and versatile choice for a multitude of applications. Grade 316 stainless steel, however, incorporates an addition of molybdenum alongside the chromium and nickel found in 304. This pivotal alloying element dramatically enhances the material’s resistance to chloride-induced corrosion, such as pitting and crevice corrosion. This makes 316 vastly superior in harsh environments like marine settings, chemical processing plants, coastal areas, or applications involving de-icing salts. Consequently, the selection hinges on a thorough assessment of the operating environment for the presence of chlorides. Investing in the higher-grade 316 material is often a prudent decision for ensuring long-term reliability and safety.

Selecting and Considering Stainless Steel Washers for Outdoor Applications

Despite their “stainless” reputation, these washers still face significant challenges when exposed to the rigors of outdoor environments. Outdoor conditions are complex, involving persistent rain, high humidity, ultraviolet radiation, significant temperature fluctuations, and urban pollution or coastal salt spray. For the vast majority of standard outdoor applications—such as outdoor furniture, railings, and canopy structures—grade 304 stainless steel washers provide sufficient protection against rust and maintain an acceptable appearance. However, in highly corrosive atmospheres near coastlines or industrial plants, an upgrade to grade 316 becomes necessary. Beyond material grade, surface finish also plays a role. Opting for washers that have undergone a passivation treatment is beneficial. This chemical process removes free iron contaminants from the surface and enhances the density and protective quality of the natural chromium oxide layer, thereby boosting overall weather resistance.

Effectively Preventing Galling in Stainless Steel Washers

Stainless steel washers, particularly when used with fasteners of the same material, are susceptible to a phenomenon known as “galling” or “cold welding.” This is not true welding but a form of severe adhesive wear where, under pressure, the protective surface oxide films are broken down. This allows the underlying bare metals to make contact, and through a combination of frictional heat and microscopic movement between the threads, atomic diffusion occurs, leading to a severe tearing and eventual seizure of the parts. Preventing galling requires a multi-faceted approach. Firstly, consider using a material combination, such as pairing a stainless steel bolt with a carbon steel washer, to alter the metallic characteristics and friction coefficients. Secondly, the application of a dedicated anti-seize compound or molybdenum-disulfide-based lubricant during assembly is extremely effective, as it creates a protective barrier film between the contacting surfaces. Furthermore, controlling the assembly speed by using a slow, steady torque is a critical operational technique to minimize frictional heat generation and reduce the risk of galling.

Types of Stainless Steel Lock Washers and Their Working Principles

In dynamic applications subject to vibration, shock, or load variations, standard flat washers are insufficient to prevent spontaneous loosening of the fastener assembly. This is where stainless steel lock washers come into play. They function by exerting a continuous spring force or by altering the frictional properties to maintain clamp force. Common types include split spring lock washers, which utilize the spring tension from their helical cut shape to resist rotational loosening. Tooth lock washers, available with internal, external, or combination teeth, bite into the bearing surface of the fastener and the joint material with their sharp teeth, creating a powerful mechanical impediment to rotation. Wave washers provide a spring force through their undulating, wave-like form and are suitable for applications requiring frequent disassembly and where moderate preload is acceptable. Each type of lock washer operates on a distinct principle and is optimized for specific scenarios; understanding these differences is fundamental to achieving effective vibration resistance.
