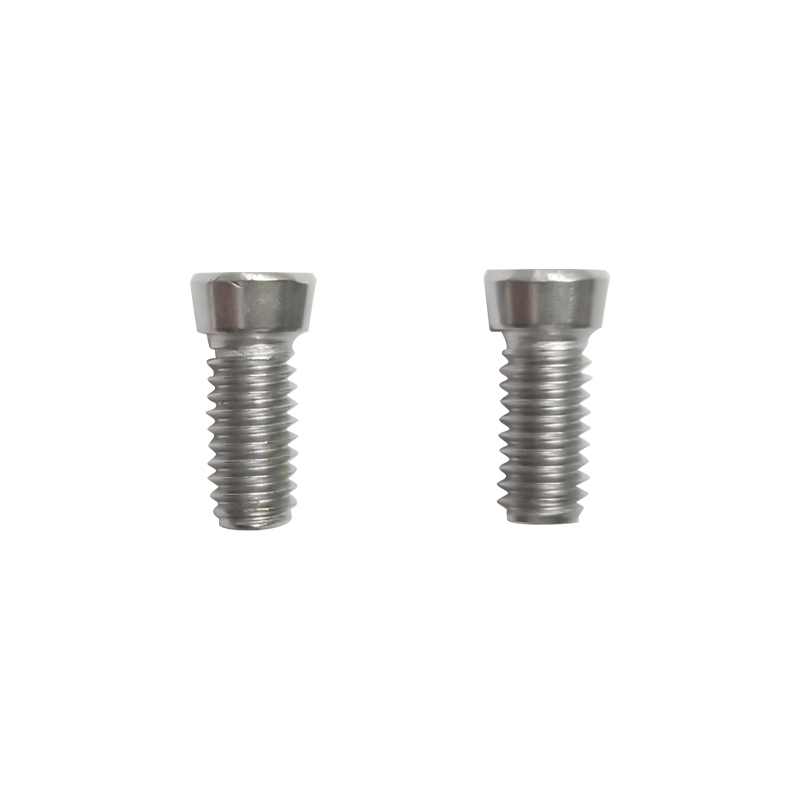

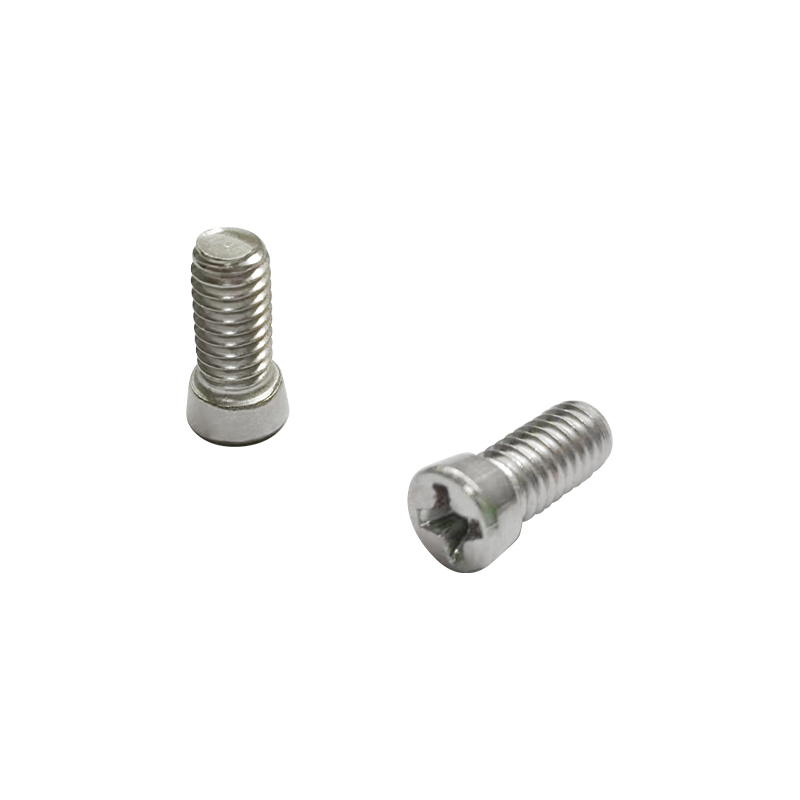

Cylinder Head Cross Ressed Machine Screw

This Cylinder Head Cross Recessed Machine Screw features a specification of M5-0.8*50 and is manufactured from SUS304 stainless steel, offering corrosion resistance and mechanical durability. The cylindrical head design, combined with across-recessedd drive, allows for stable torque transmission during installation. As a machine screw, it possesses uniform threads and is designed to be used with nuts or pre-tapped holes. The surface undergoes a brightening treatment, which improves smoothness and visual consistency. This fastener is suitable for assembly in precision instruments, electronic equipment, and metal structures where connection accuracy and rust prevention are required.

PREV：Socket cap head internal hexagonal machine screwNEXT：CSK Hex Drive With Steps Machine Screw
  • Product Features

  • Specification: M5-0.8*50

    Material: SUS304

    Surface Treatment: Brightening

    Product Introduction

    The Cylinder Head Cross Recessed Machine Screw is a precision fastener designed for applications requiring a low-profile head with a widely compatible drive system. The cylinder head configuration provides a compact, low-profile appearance suitable for confined spaces and applications where head height is limited. The cross recessed drive enables positive engagement with standard Phillips drivers, offering broad tool compatibility for convenient installation. This machine screw features precision threads that mate with pre-tapped holes or nuts, providing consistent and reliable engagement. Manufactured from SUS304 stainless steel with brightening surface treatment, this screw provides general corrosion resistance with an aesthetic bright finish. The M5-0.8 thread specification with 50mm length offers extended engagement for structural connections and machinery assemblies.

    Core Advantages

    01
    Cylinder Head Design
    Low-profile, compact head configuration suitable for confined spaces and applications with limited head height.
    02
    Cross Recessed Drive
    Widely compatible drive system enables easy engagement with standard Phillips drivers for convenient installation.
    03
    Machine Thread Design
    Precision threads mate with pre-tapped holes or nuts for consistent and reliable engagement.
    04
    SUS304 Stainless Steel
    Provides general corrosion resistance for indoor and mild outdoor applications with a bright finish.
    05
    Brightening Treatment
    Aesthetic bright finish with enhanced surface smoothness and improved corrosion resistance.
    06
    Extended Length
    50mm length provides extended engagement for structural connections and machinery assemblies.

    Product Features

    Cylinder head configuration Low-profile, compact head design suitable for confined spaces and applications where head height is limited.
    Cross recessed drive Widely compatible cross-point drive system enables easy engagement with standard Phillips drivers for convenient installation and broad tool compatibility.
    Machine thread design Precision threads mate with pre-tapped holes or nuts, providing consistent and reliable engagement for general-purpose fastening.
    SUS304 stainless steel material Provides general corrosion resistance for indoor and mild outdoor applications with a bright aesthetic finish.
    Brightening surface treatment Aesthetic bright finish with enhanced surface smoothness and improved corrosion resistance.
    M5-0.8 thread specification Metric thread configuration provides consistent performance for structural connections and machinery assemblies.
    50mm length Provides extended engagement for structural connections and machinery assemblies.

    Application Scenarios

    General machinery assembly
    Equipment enclosures
    Electronics chassis
    Furniture construction
    Automotive components
    Instrumentation mounting
    Industrial equipment
    Architectural metalwork

    This cylinder head cross recessed machine screw is deployed in metal fastening applications requiring a low-profile head with a widely compatible drive system and extended length. Applications include general machinery assembly where head height is limited, equipment enclosures, electronics chassis, furniture construction, automotive components, instrumentation mounting, industrial equipment, and architectural metalwork where the cylinder head provides a compact profile and the cross recessed drive enables convenient installation with standard Phillips tools.

    Common Questions and Solutions

    What are the advantages of the cylinder head design?
    The cylinder head provides a low-profile, compact appearance that is suitable for confined spaces and applications where head height is limited. The cylindrical profile also provides consistent clamping force distribution across the bearing surface.
    What is the recommended Phillips driver size for this screw?
    Select a Phillips driver that matches the head size specified for the M5-0.8 thread. Using the correct driver size prevents driver slippage and damage to the drive recess. Refer to the product specification for the exact Phillips size.
    What is the difference between cylinder head and pan head machine screws?
    The cylinder head provides a lower profile than standard pan heads, with a cylindrical outer profile that is suitable for confined spaces. Pan heads have a slightly larger bearing surface with a rounded outer profile. The cylinder head offers a more compact appearance.
    What material thickness can the M5-0.8*50 screw accommodate?
    The M5-0.8 specification with 50mm length provides extended engagement for structural connections and machinery assemblies. The actual maximum material thickness depends on thread engagement requirements. Consult the technical datasheet for specific thickness recommendations.
    What is the brightening surface treatment?
    Brightening is a surface treatment process that enhances the natural finish of the stainless steel material. It provides a bright, aesthetic appearance while improving surface smoothness and corrosion resistance through removal of surface contaminants and oxidation.
    What is the recommended installation torque for this screw?
    Installation torque for M5-0.8 machine screws varies based on material and application. Use torque-controlled drivers to prevent over-tightening. Consult the technical datasheet for recommended torque values based on substrate material and application requirements.

    Installation Considerations

    1
    Select the correct Phillips driver size that matches the screw head recess to prevent driver slippage and drive damage during installation.
    2
    Ensure pre-tapped holes are within specified thread tolerance to prevent thread damage and ensure proper engagement.
    3
    Use torque-controlled installation tools to prevent over-driving. The cylinder head should seat against the workpiece surface without damaging the head or surrounding material.
    4
    When using nuts, apply appropriate torque values and consider using lock washers or thread-locking compounds for vibration resistance.
    5
    Select the appropriate thread size and length based on the thickness of materials being fastened and thread engagement requirements.
    6
    The brightening treatment provides aesthetic and corrosion protection. Handle screws with clean gloves to maintain surface appearance and prevent contamination.
