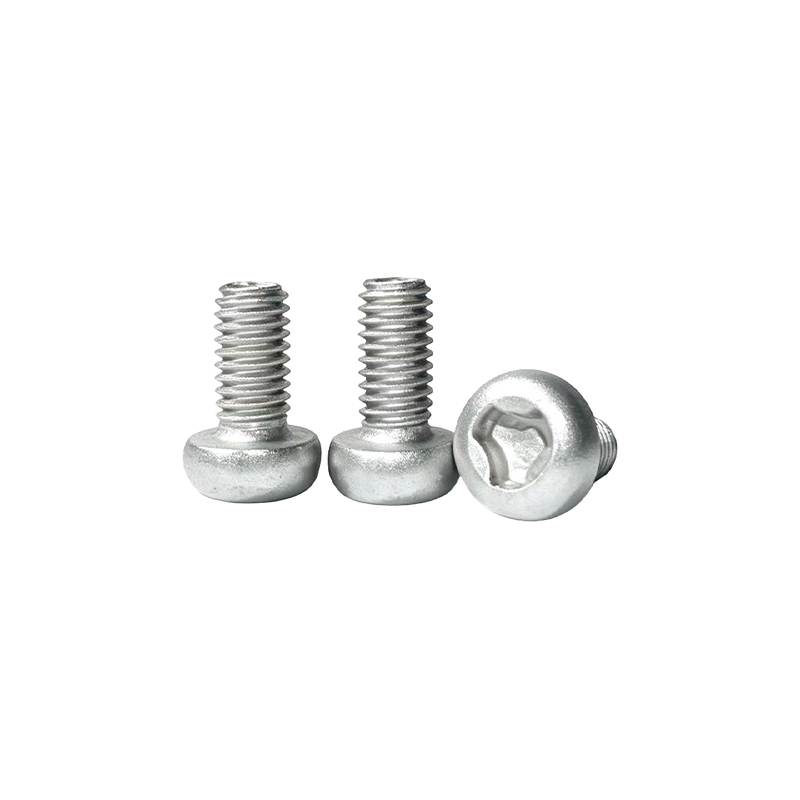

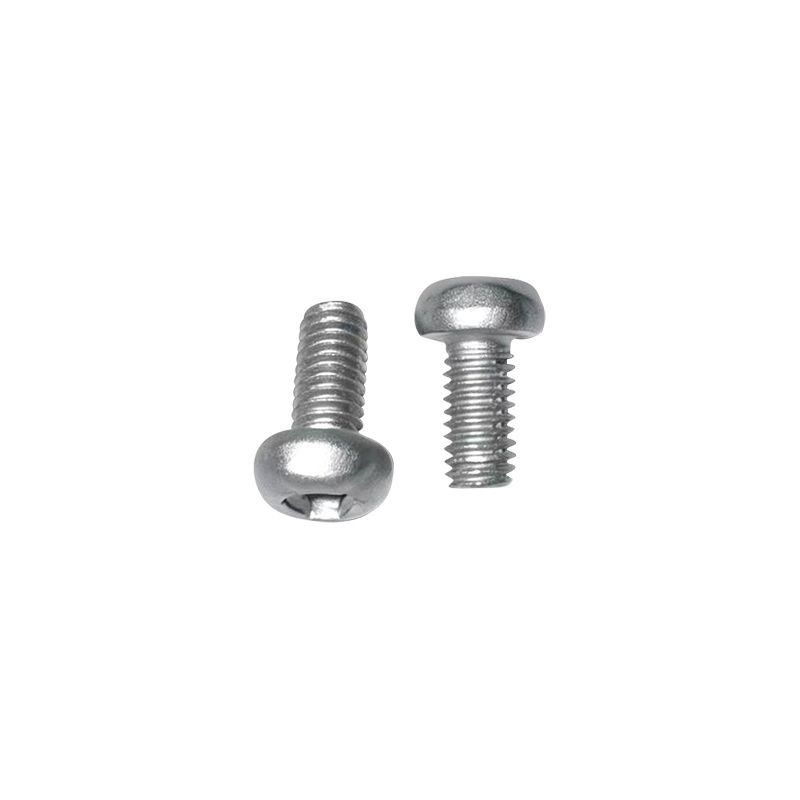

Pan Head Y Drive Machine Screw

PREV：No previous articleNEXT：Round Washer Head Y Drive Machine Screw
  • Product Features

  • Specification: 5*10

    Material: 1022

    Surface Treatment: Dacromet

    Product Introduction

    The Pan Head Y Drive Machine Screw is a precision fastener designed for applications requiring a low-profile head with a specialized drive system. The pan head configuration provides a flat underside for accurate clamping force distribution when securing brackets, fittings, and components in machinery assemblies. The Y drive features a unique three-lobe profile that provides positive engagement with reduced cam-out risk during installation, offering an alternative to standard cross drives. This machine screw features precision threads that mate with pre-tapped holes or nuts, providing consistent and reliable engagement. Manufactured from 1022 carbon steel with Dacromet surface treatment, this screw provides strength and high corrosion resistance for demanding environments. The 5x10 specification offers compact engagement for machinery assemblies and precision equipment.

    Core Advantages

    01
    Pan Head Configuration
    Flat underside provides accurate clamping force distribution for secure fastening of brackets, fittings, and components.
    02
    Y Drive
    Specialized three-lobe drive profile provides positive engagement with reduced cam-out risk during installation.
    03
    Machine Thread Design
    Precision threads mate with pre-tapped holes or nuts for consistent and reliable engagement.
    04
    1022 Carbon Steel
    Provides strength for general metal fastening applications with appropriate surface treatment.
    05
    Dacromet Coating
    Provides high corrosion resistance with extended salt spray protection for outdoor and industrial applications.
    06
    Compact Specification
    5x10 specification provides compact engagement for machinery assemblies and precision equipment.

    Product Features

    Pan head configuration Flat underside provides accurate clamping pressure for brackets, fittings, and structural connections in metal assembly.
    Y drive Specialized three-lobe drive profile provides positive engagement with reduced cam-out risk during installation, offering an alternative to standard cross drives.
    Machine thread design Precision threads mate with pre-tapped holes or nuts, providing consistent and reliable engagement for general-purpose fastening.
    1022 carbon steel material Provides strength for general metal fastening applications with appropriate surface treatment.
    Dacromet surface treatment Offers high corrosion resistance with salt spray protection suitable for outdoor and industrial environments.
    5x10 specification Compact thread and length configuration provides engagement for machinery assemblies and precision equipment.

    Application Scenarios

    General machinery assembly
    Equipment enclosures
    Electronics chassis
    Furniture construction
    Automotive components
    Instrumentation mounting
    Industrial equipment
    Specialized assemblies

    This pan head Y drive machine screw is deployed in metal fastening applications requiring a low-profile head with a specialized drive system and corrosion resistance. Applications include general machinery assembly, equipment enclosures, electronics chassis, furniture construction, automotive components, instrumentation mounting, industrial equipment, and specialized assemblies where the Y drive provides positive engagement with reduced cam-out risk and the Dacromet coating ensures corrosion protection.

    Common Questions and Solutions

    What is the Y drive and what are its benefits?
    The Y drive features a unique three-lobe profile that provides positive engagement with reduced cam-out risk compared to Phillips or other cross drives. The design allows for more reliable torque transfer during installation and reduces the risk of driver slippage.
    What tool is required for installation?
    A Y drive driver matching the specific drive profile is required for installation. Standard Phillips or other cross drivers will not engage properly. Consult the product specification for the exact Y drive size required.
    What material thickness can the 5x10 screw accommodate?
    The 5x10 specification provides compact engagement for machinery assemblies and precision equipment. The actual maximum material thickness depends on thread engagement requirements. Consult the technical datasheet for specific thickness recommendations.
    What is the Dacromet coating and what are its benefits?
    Dacromet is a water-based zinc flake coating that provides high corrosion resistance with extended salt spray protection. It offers an environmentally friendly alternative to conventional plating processes and is suitable for outdoor and industrial applications requiring long-term corrosion protection.
    Is this screw suitable for outdoor applications?
    Yes. The 1022 carbon steel combined with Dacromet coating provides corrosion resistance for outdoor applications. The Y drive also provides positive engagement for reliable installation in field conditions.
    What is the recommended installation torque for this screw?
    Installation torque varies by material and application. Use torque-controlled drivers to prevent over-tightening. Consult the technical datasheet for recommended torque values based on substrate material and application requirements.

    Installation Considerations

    1
    Select the correct Y drive driver that matches the screw head recess to ensure positive engagement and prevent drive wear during installation.
    2
    Ensure pre-tapped holes are within specified thread tolerance to prevent thread damage and ensure proper engagement.
    3
    Use torque-controlled installation tools to prevent over-driving. The pan head should seat against the workpiece surface without damaging the head or surrounding material.
    4
    When using nuts, apply appropriate torque values and consider using lock washers or thread-locking compounds for vibration resistance.
    5
    The Dacromet coating provides corrosion resistance. Handle screws with clean gloves to maintain coating integrity and prevent contamination that could affect corrosion performance.
    6
    For applications requiring specific torque values, consult the technical datasheet for recommended installation parameters.
